Place of Origin: | Shenzhen, China(mainland) |
نام تجاری: | Kailite |
گواهی: | CE,FCC,ROHS ISO9001 |
Model Number: | P6 |
Minimum Order Quantity: | 2 suqare meter |
---|---|
قیمت: | Negotiation |
Packaging Details: | wooden case/ flight case packing |
Delivery Time: | 5--20 working days |
Payment Terms: | T/T, D/A, D/P, L/C, Western Union, MoneyGram |
Supply Ability: | 8000sqm per month |
پیکسل ها: | 6 میلی متر | رنگ لوله: | تمام رنگی |
---|---|---|---|
ضمانتنامه: | ضمانتنامه | تنظیم روشنایی: | قابل برنامه ریزی/خودکار/دستی |
قابلیت سرویس دهی: | عقب | زاویه مشاهده: | 140 (H)/140 (V) |
برجسته: | پانل LED در فضای باز,صفحه نمایش LED تجاری,دیوار تصویری LED بدون درز SMD3535 |

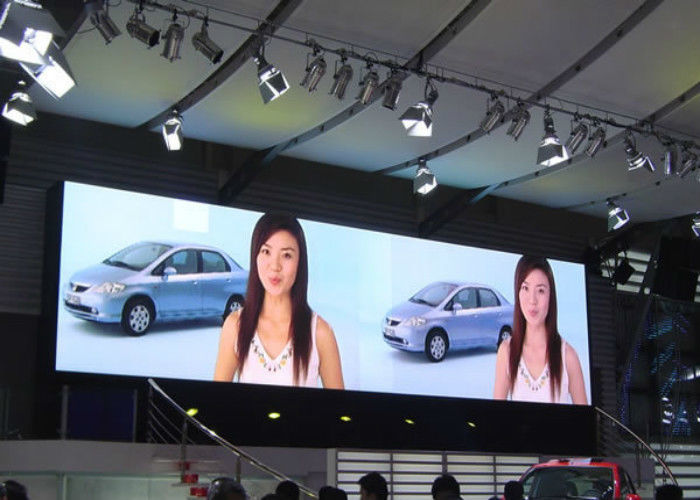

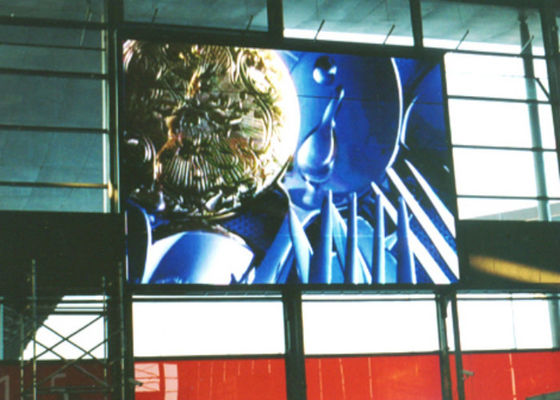

Full Color Hire Seamless LED Video Wall Screen Outdoor Fast Installation And Disassembling
CNC technology helps to realize truly seamless connection between cabinets. Also, Good lock design helps to enhance the seamlessness.
Our good PCB and cabinet materials make sure of good heat radiation Therefore; there is no need for fans, which makes it ideal for some high-level meetings.
Fast installation and disassembling:Humanized cabinet design makes sure of fast installation and disassembling, which saves time and labor cost.
Ultra-Light:The weight is only 9KG, Very convenient for installation, especially useful for some urgent need and it can save a lot of time and labor cost.
High refresh rate:It can enable LED screen to be excellently exposed to live TV shows and cameras. So it is popular for TV station, high leveled events, etc.
Item | KP6 |
Pixel Configuration | SMD LED 3535 |
Pixel Pitch (INCH) | 0.236 |
Pixel Pitch (mm) | 6.0 |
Pixel Density(pixels/m²) | 27777 |
Cabinet Size (inch) | 22.68(W)×22.68(H)×3.5(D) |
Cabinet Size (mm) | 576(W)×576(H)×90(D) |
Panel Resolution (W×H) | 96×96 |
Panel Material | Die – casting aluminum |
Weight (kg/pcs) | ≤13.5 |
White balance brightness (nits) | 6500 adjustable |
*Max. Power Consumption (W/m²) | 1000 |
*Avg. Power Consumption (W/m²) | 350 |
Serviceability | Rear |
Viewing Angle (deg.) | 140(H)/140(V) |
Refresh Rate (Hz) | >1200 |
Driving Mode | 1/8 scan |
Gray Level (Bit) | 12/14/16 |
Contrast Ratio | 3000:1 |
Color Temperature (K) | 2000≤ TC≤ 9300 adjustable |
Brightness Adjustment | Programmable/auto/manual |
Color Calibration | Brightness and chroma calibration |
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
A: Low MOQ, 1pc for sample checking is available
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
