Name: P6 Outdoor Full Color LED Display Screen SMD 3535 6500cd/sqm
Brand: SHENZHEN KAILITE OPTOELECTRONIC TECHNOLOGY CO., LTD
SKU: صفحه
Price: 400.00 USD
Availability: InStock

خانه محصولات نمایش تبلیغات در فضای باز

P6 Outdoor Full Color LED Display Screen SMD 3535 6500cd/sqm

جزئیات محصول:

محل منبع:	گوانگدونگ ، چین
نام تجاری:	KAILITE
شماره مدل:	صفحه

پرداخت:

مقدار حداقل تعداد سفارش:	2

مخاطب

توضیحات محصول جزئیات

پیکسل:	6 میلی متر	اندازه ماژول:	192*192mm
تراکم جسمی:	27777 نقطه در متر مربع	پیکسل پیکسل:	1R1G1B
تراشه LED:	SMD3535	وضوح ماژول:	32*32
قدرت ماژول:	35W	زاویه مشاهده:	H: 120 ° ؛ V: 120 °
فاصله مطلوب:	6-70 متر	حداکثر قدرت:	900 وات
اندازه کابینه:	W: 960mm*H: 960mm	وضوح کابینه:	96*96
روش رانندگی:	اسکن جریان ثابت 1/4	بسامد فریم:	≥60 هرتز
فرکانس تازه کردن:	≥1200 هرتز
برجسته کردن:	P6 outdoor LED display screen,SMD 3535 LED display,6500cd/sqm outdoor LED screen , SMD 3535 LED display , 6500cd/sqm outdoor LED screen

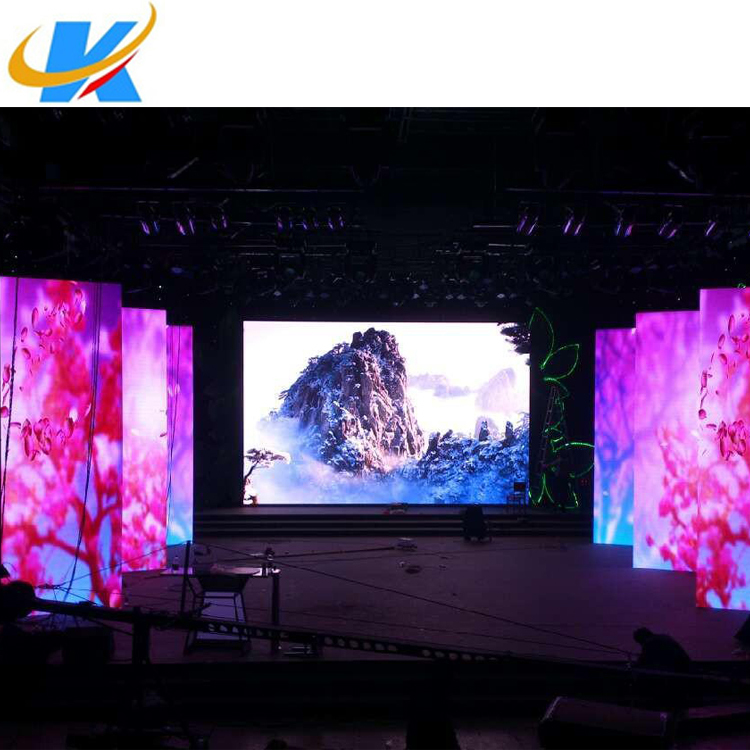

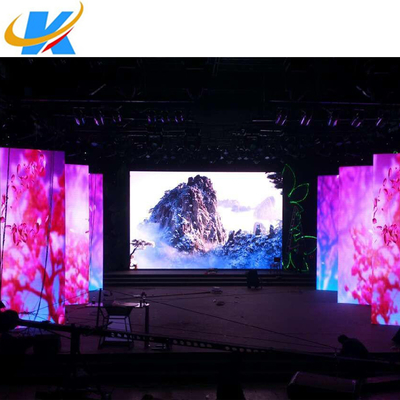

Stage Background Die Casting Aluminum P6 Full Color Outdoor LED Display Screen for Concert

Product Attributes

Attribute	Value
Use	Outdoor
Tube Chip Color	FULL COLOR
Display Function	Video
Pixels	6mm
Screen Dimension	Customized Size
Product Name	Factory direct led tv full color smd screen sign outdoor p6
Brightness	6500cd/sqm
Application	Outdoor
LED Chip	SMD 3535
Module Size	192*192mm
Certificate	CE RoHS FCC Certifications
Viewing Angle	H120° V120°
Life Span	100000 hours
Warranty	2 years
Driving Method	1/8 Scan Constant Current

Product Description

LED technology has revolutionized visual displays worldwide. As a premier application of this technology, our LED screens deliver exceptional visual and auditory experiences, transforming events into vibrant spectacles.

SHENZHEN KAILITE OPTOELECTRONIC CO.,LTD specializes in manufacturing high-quality LED displays. We provide complete, customized LED screen solutions at competitive prices with guaranteed quality.

Key Features

Customized solutions tailored to your specific requirements
Factory-direct pricing with superior quality
Quick and easy installation with simple maintenance
2-year comprehensive warranty

Technical Specifications

Item	P6
Pixel Pitch	6mm
Module Size	192*192mm
Physical Density	27777dots/sqm
Pixel Configuration	1R1G1B
LED Chip	SMD3535
Module Resolution	32*32
Module Power	35w
Viewing Angle	H:120°;V:120°
Optimal Viewing Distance	6-70m
Maximum Power	900w
Cabinet Size	W:960mm*H:960mm
Cabinet Resolution	96*96
Driving Method	Constant current 1/4 scan
Frame Frequency	≥60Hz
Refresh Frequency	≥1200Hz
Brightness	≥6500cd
Operation Temperature/Humidity	-30℃~+45℃ 10%~95%
Input Voltage	220V±10%/110V±10%
Ingress Protection	Front IP:67:Back IP:65
Gray Scale/Color	≥16.7M color
Brightness Control	Manual/Automatic
Input Signal	RF/S-Video/RFB/etc.
Control System	PCTV+DVI video card control card fiber
MTBF	>5,000hrs
Life Time	>100,000 hours
Lamp Failure Frequency	<0.0001
