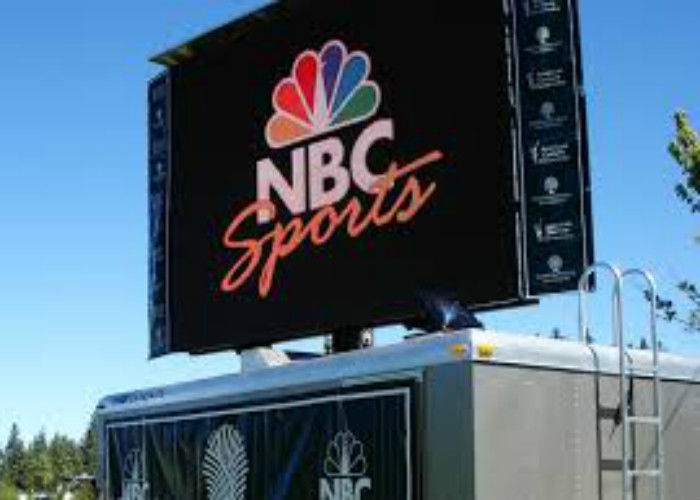

IP65 HD Outdoor Full Color LED Display P8 Iron, Steel And Aluminum Cabinet wifi control
Features
1, Good quality raw material, accurate technique and careful inspection
2, Using virtual pixels, better viewing effect for both text & graphic and video.
3, High color uniformity and clear image can bring you a vivid audio visual effect.
4, High brightness and adjustable according to the application environment.
the application of our led display
it can be used on the shopping mall, bank,bus station, train station,center of the downtown,airport, school, factory ,bus ,taxi and so on.
P8 Led display specification
| HD outdoor full color P8 Led display specification |
| LED Lamps |
Type |
SMD3535(High Brightness LEDs) |
| LED Standard |
Real Pixel(1R1G1B) |
| Red Wavelength |
625-630nm |
| Green Wavelength |
515-530nm |
| Blue Wavelength |
465-475nm |
| LED Module |
Pixel Pitch |
8mm |
| Module Size |
256mmx128mm |
| Module Resolution |
32*16dots |
| LED Cabinet |
Cabinet Size |
768mmX768mm,1024mmx1024mm |
| Cabinet Resolution |
96pixels *96pixels |
| Cabinets Material |
Sealed Iron Cabinet |
| LED Display |
Pixel Density |
15625pixels/sq.m |
| Drive IC |
MBI5124 |
| Power Supply |
Series connection |
| Brightness |
>7500cd/sqm |
| Display Color |
16.7million |
| Viewing Angle |
110°(Horizontal),50°(Vertical) |
| Best Viewing Distance |
6m~200m |
| Max Power Consumption |
600 w/sq.m |
| Average Consumption |
300 w/sq.m |
| Weight |
40Kgs/sq.m |
| Refresh Rate |
3000hz |
| Input Voltage |
AC220V/50H or AC110V/60H |
| Output Voltage |
DC5V,40A |
| Grey Scale Levels |
16bit |
| Display Colors |
R(1024) x G(1024) x B(1024) |
| MTBF |
10,000 hours |
| Life-span |
100,000 hours |
| Protection Level |
IP65 |
| Failure leds |
less than 0.0003 |
| Working Temperature |
-25℃~65℃ |
| Drive Mode |
1/4scaning |
| Working Humidity |
5%~99% |
| Control System |
Control method |
Synchronization & Asynchronization |
| Control System |
LINSN Control System (sender,receiver,HUB with 75 interface,software) ( within xinxun Asynchronization) |
| Software |
LED Studio (LINSN) |
| Input Signal |
MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc |
| PC Operating system |
Microsoft Windows 7, 98, 2000, XP and Vista |
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
♦ Production process:
1) Incoming Inspection→2)SMD→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
Guidance service:
We can guide on line if customers have questions about the installation and usage. For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, we can dispatch our engineer for on-site guidance.
Warranty period:
2 years after shipment.
Maintenance principles:
response in time, solve problems as soon as possible and ensure the use.
Maintenance terms:
In the Maintenance period, free of all maintenance charges. Under normal use and storage, we will be responsible for the equipments. If there is any failure in product quality, our company will maintain and change the components for free. After Maintenance period, only charge the material costs fees free of manual work fees.
