Indoor Rental LED Screen - Die Casting Aluminum Cabinet 100000 Hour Display

Indoor Rental LED Screen - Die Casting Aluminum Cabinet 100000 Hour Display

جزئیات محصول:
محل منبع: شنژن، چین
نام تجاری: KAILITE
گواهی: IOS9001 , IOS2000,FCC,RoHS,CE,CCC
شماره مدل: P2.97
پرداخت:
مقدار حداقل تعداد سفارش: 2 متر مربع
قیمت: Negotiatable
جزئیات بسته بندی: فلایت کیس برای کابینت led P2.9 500*1000mm
زمان تحویل: 22-24 روز
شرایط پرداخت: L/C، D/A، D/P، T/T، وسترن یونیون، مانی گرام
قابلیت ارائه: 9000 متر مربع در ماه
مخاطب
توضیحات محصول جزئیات
خدمات لوگو رایگان: بله مورد: 2.9 میلی متر
تراکم پیکسلی: 112896 نقطه / متر مربع اره: سرپوشیده
نرخ تازه سازی: 7680 هرتز کارت دریافت: 1 عدد
طول عمر: 100000 ساعت تعداد ماژول: 2*4 عدد
تابع: پخش ویدئو/تصویر/کلمات استاندارد LED: SMD1515
فاصله مشاهده: 3-10 متر نرخ: 0.0001
رنگ تراشه لوله: تمام رنگ ولتاژ ورودی: AC110-220v±10%
دسترسی به سرویس: عقب

Indoor Rental LED Screen - Die Casting Aluminum Cabinet 100000 Hour Display
Product Overview

Rental companies and event producers seeking an LED display that delivers long-term reliability and low total cost of ownership will find the ideal solution in our Indoor Rental LED Screen. Built around a die casting aluminum cabinet with a 100,000-hour lifetime rating, this display offers exceptional durability and performance.

The die casting aluminum manufacturing process produces precision structural components with consistent mechanical properties, tight dimensional tolerances, and superior resistance to repeated handling. This ensures cabinets remain free from flexing, warping, or cracking under the loads imposed by frequent assembly, transport, and re-assembly typical in rental environments.

The 100,000-hour lifetime rating reflects genuine long-term durability of the SMD2020 LEDs and advanced thermal management design, not just marketing numbers. Front and rear maintenance access allows service technicians to replace individual LED modules without removing entire cabinets from walls, significantly reducing mean time to repair and ensuring maximum display uptime between events.

Technical Specifications
Parameter Specification
Pixel Pitch Options P2.6 / P2.97 / P3.91 / P4.81 (selectable)
Module Size 250 x 250 mm
Cabinet Size 500 x 500(1000) x 84 mm
Cabinet Material Die Casting Aluminum
Cabinet Weight 7 kg (single hand lift)
Brightness Greater than or equal to 800 nits
Refresh Rate 1920-3840 Hz
Viewing Angle H: 160 degrees; V: 160 degrees
Grey Level 12-16 bit
Ingress Protection IP43
Life Time Greater than 100,000 hours
Maintenance Front and Rear maintenance
LED Type SMD2020
Video Frame Rate Greater than or equal to 60 Hz
Failure Rate Less than 0.0002
Application Stage events, car exhibitions, rental displays, corporate events
Key Benefits
  • Die casting aluminum cabinet for structural durability – Precision die casting produces cabinets with consistent dimensional accuracy and resistance to flexing and cracking under repeated handling
  • 100,000-hour lifetime rating – L50 lifetime specification reflects genuine long-term LED durability, providing realistic replacement estimates rather than marketing claims
  • Front and rear maintenance access – Individual LED modules can be replaced without removing cabinets from walls, reducing repair time and maintaining operational readiness between rental events
  • 7 kg per cabinet for single-person handling – Lightweight construction ensures setup crew safety and enables rapid deployment and strike operations
  • IP43 ingress protection for rental environments – Protection against solid objects larger than 1mm and water spray from any direction provides adequate durability for indoor event environments with multiple handling crews
Applications

Ideal for long-term rental fleet investment, corporate event production companies, concert and festival touring productions, theater and performing arts venues with fixed or semi-permanent installations, broadcast studio backgrounds, and any application where total cost of ownership over multi-year periods matters as much as initial purchase price.

Why It Works

The die casting aluminum cabinet forms the structural foundation of our product's durability claims. Die casting involves injecting molten aluminum at high pressure into precision-machined steel dies, resulting in parts with consistent wall thickness, excellent surface finish, and repeatable mechanical properties unmatched by other manufacturing processes.

For rental LED cabinets handled dozens of times annually by different crews, carried up and down stairs, loaded and unloaded from trucks, and installed in hundreds of venues, enclosure structural integrity matters more than almost any other specification. Die casting aluminum resists cracking under impact and prevents flexing, protecting internal LED modules from mechanical shock and vibration far better than alternative enclosures.

The 100,000-hour lifetime represents an L50 specification – the industry standard measure of LED lifetime defined as the point where LEDs degrade to 50% of initial brightness output. This provides more meaningful performance data than simple MTBF figures, reflecting actual optical performance rather than statistical failure likelihood.

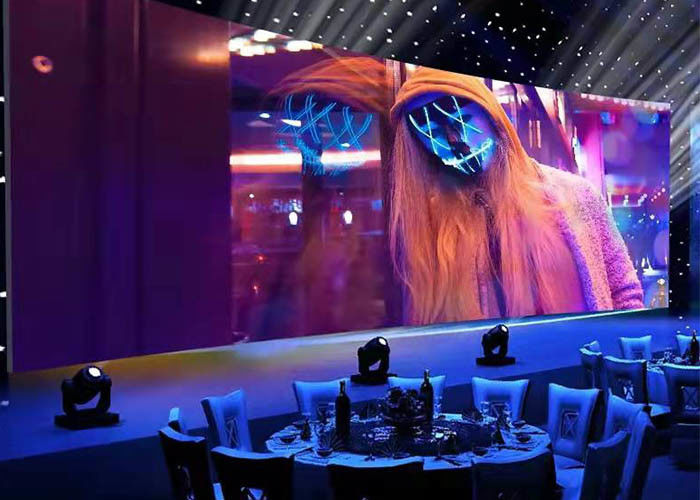

Indoor Rental LED Screen - Die Casting Aluminum Cabinet 100000 Hour Display 0
After-sales Service
  1. Your inquiry about our products or pricing will receive a response within 24 hours
  2. We provide 2 years warranty and lifelong maintenance support with warm after-sales service
  3. Flexible delivery options available – choose the most convenient and cost-effective shipping method
  4. Beyond Outdoor LED Displays, Visionled also offers LED Pharmacy Cross Displays, LED Flexible Displays, Indoor LED Displays, LED Gas Price Signs, and comprehensive Indoor/Outdoor LED Sign solutions
Frequently Asked Questions
Can the product be customized?
Yes, we offer full customization. Share your requirements and we'll arrange sampling first, confirm sample details with you, then proceed with large-scale production once all specifications are finalized.
Can I place a sample order for testing?
Absolutely. We'll create a sample order according to your specific needs and requirements.
How do I install LED displays?
We provide comprehensive installation manuals and can guide you through video tutorials. Technical drawings are also available upon request to ensure proper installation.
How do I proceed with an LED Screen order?
  1. Share your requirements or application needs with us
  2. We provide quotation based on your requirements or our professional suggestions
  3. Customer confirms design documentation and places deposit for formal order
  4. We arrange and manage the production process
